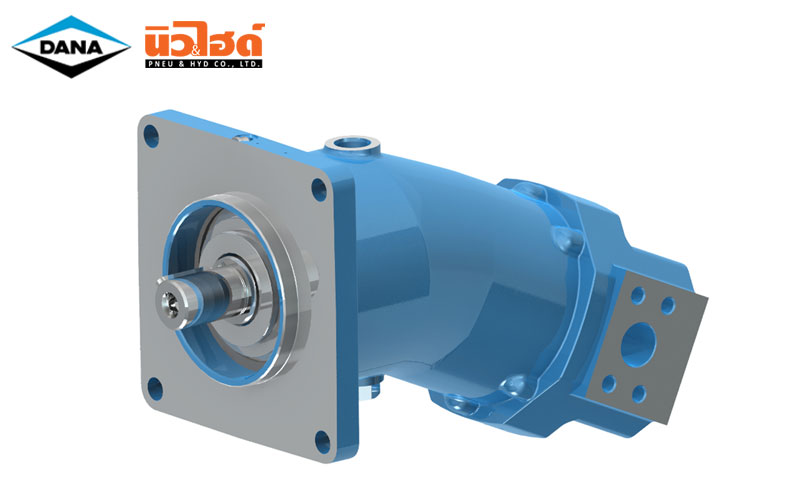

DANA Pump Fixed Displacement - SH11C series

The SH11C series pumps are bent axis, axial piston hydraulic units with fixed displacement for operation in open circuit. SH11C series pumps are available in metric and SAE mounting configuration.

DANA Axial piston pump Fixed Displacement - SH11C series

ดาวน์โหลดไฟล์ PDF

Feature | DANA Pump Fixed Displacement SH11C

SH11C pumps are a family of fixed displacement, bent axis piston design for operation in open circuit. The proven design incorporating the lens shape valve plate, the high quality components and manufacturing techniques make the SH11C pumps to able provide up to 430 bar [6235 psi] continuous and 480 bar [6960 psi] peak performance. Fully laboratory tested and field proven, these pumps provide maximum efficiency and longlife. Heavy duty bearings permit high radial and axial loads. Versatile design will be fit the SH11C pumps to any application both industrial and mobile. SH11C pumps are available in both ISO and SAE version.

Technical | DANA Pump Fixed Displacement SH11C

Displacment			010*	016*	020*	030*	045*	055	063	075	090	108	125	160	180
Radial load (F_{q max})	N [lbf]	-	3000 [674.4]	3200 [719.4]	4300 [967.5]	6100 [1372.5]	8350 [1877.2]	9200⁽¹⁾ [2068]	10300⁽¹⁾ [2317.5]	11500⁽¹⁾ [2587.5]	12900⁽¹⁾ [2902.5]	13600⁽¹⁾ [3060]	15900⁽¹⁾ [3577.5]	18400⁽¹⁾ [4140]	10600⁽¹⁾ [4635]
Load	N/bar [lbf/psi]	-	8.5 [0.128]	9 [0.135]	12 [0.18]	19 [0.285]	23.8 [0.357]	25 [0.45]	30 [0.45]	25.7 [0.386]	28.5 [0.428]	35 [0.525]	37 [0.555]	41 [0.615]	45 [0.675]
Axial pulling load (F_axmax)	N[lbf]	250 bar [3625 psi]	550 [123.6]	850 [191.1]	1000 [225]	1300 [292.5]	1740 [391.2]	1920 [432]	2150 [484]	2300 [517.5]	2800 [630]	2900 [652.5]	3300 [742.5]	3800 [855]	4050 [911.2]
Axial pulling load (F_axmax)	N[lbf]	350 bar [5075 psi]	800 [179.8]	1050 [236.0]	1300 [292.5]	1800 [405]	2400 [539.5]	2650 [596]	2990 [673]	3550 [798.75]	3800 [855]	4050 [911.25]	4550 [1023.7]	5300 [1192.5]	5800 [1305]
Axial pushing load (F_axmax)	N[lbf]	< 100 bar [< 1450psi]	320 [71.9]	320 [71.9]	500 [112.5]	500 [112.5]	800 [179.8]	800 [180]	800 [180]	1000 [225]	1000 [225]	1250 [281.25]	1250 [281.25]	1600 [360]	1600 [360]
Axial pushing load (F_axmax)	N/bar [lbf/psi]	> 100 bar [> 1450psi]	3 [0.045]	3 [0.045]	5 [0.075]	5 [0.075]	8.7 [0.131]	9 [0.135]	9 [0.135]	12 [0.18]	12 [0.18]	13 [0.195]	13 [0.195]	17 [0.255]	17 [0.255]

Specifications | DANA Pump Fixed Displacement SH11C

Size				010*	016*	020	030	045*	055	063	075	090	108	125	160	180
Displacement	-	V_g	cm³/rev [in³/rec]	10.3 [0.626]	16 [0.976]	19.9 [1.213]	31.9 [1.945]	46 [2.807]	56.35 [3.437]	63.26 [3.859]	77.82 [4.747]	86.23 [5.26]	108.4 [6.612]	124.8 [7.613]	163.9 [9.998]	178.1 [10.864]
Max. Pressure	cont.	p_nom	bar [psi]	430 [6235]
Max. Pressure	peak.	p_max	bar [psi]	480 [6960]
Max. speed		n_{1 max cont.}	rpm	3150	3150	2500	2500	2245	2000	2000	1800	1800	1600	1550	1450	1450
Max. speed		n_{1 max int ⁽¹⁾}	rpm	6000	600	4750	4750	4250	3750	3750	3350	3350	3000	3000	2650	2650
Max. flow ⁽²⁾	-	q_1max	I/min [U.S. gpm]	32 [8.5]	50 [13.2]	50 [13.2]	80 [21.1]	103 [27.2]	112 [29.5]	127 [33.5]	140 [36.96]	155 [40.92]	173 [45.67]	193 [50.95]	237 [62.57]	258 [68.2]
Max. power at pnom ⁽²⁾	-	P_{1 max}	kW hp]	23 [30.8]	35.8 [48]	35.8 [48]	57 [76.4]	74 [99.2]	80.3 107.6	91 [24.0]	100 [134]	111 [148.7]	124 [166.2]	138 [184.9]	170 [227.8]	185 [48.9]
Max. torque	cont. (p_nom)	T_nom	Nm [lbf•ft]	71 [52.36]	110 [81.13]	136 [100.23]	218 [160.66]	315 [232.33]	386 284.48	433 [319.12]	533 [392.82]	590 [435.13]	742 [546.85]	855 [630.13]	1122 [826.91]	1219 [898.40]
Max. torque	peak (pmax)	T_max	Nm [lbf•ft]	79 [58.27]	122 [89.98]	152 [112.02]	243 [179.09]	352 [260.36]	431 [317.65]	484 [356.71]	595 [438.51]	659 [486.05]	829 [610.97]	954 [703.10]	1253 [923.46]	1361 [1003.06]
Momemt of inertia ⁽³⁾	-	J	kg•m² [lbf•ft²]	0.0005 [0.0118]	0.0005 [0.0118]	0.001 [0.0235]	0.001 [0.0235]	0.004 [0.094]	0.004 [0.094]	0.004 [0.094]	0.007 [0.1645]	0.007 [0.1645]	0.012 [0.2820]	0.012 [0.2820]	0.022 [0.5170]	0.022 [0.5170]
Weight ⁽³⁾	-	m	kg [lbs]	6 [13.22]	6 [13.22]	10 [22.04]	10 [22.04]	18 [39.68]	19 [41.876]	19 [41.876]	23.7 [52.23]	23.7 [52.23]	35 [77.14]	35 [77.14]	48 [105.79]	48 [105.79]
External drain flow ⁽⁴⁾	-	q_d	l/min [U.S. gpm]	0.8 [0.2113]	0.8 [0.2113]	1 [0.264]	1 [0.264]	1.2 [0.317]	1.2 [0.317]	1.2 [0.317]	2.5 [0.66]	2.5 [0.66]	3 [0.79]	3 [0.79]	3 [0.79]	3 [0.79]
