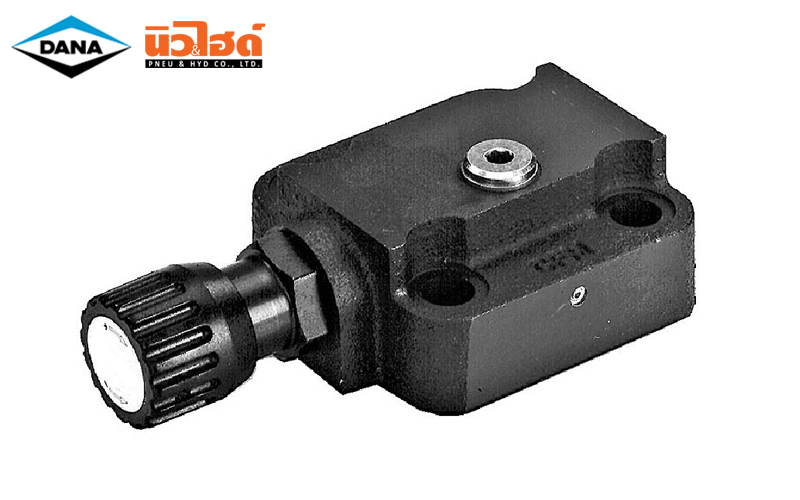

DANA Cartridge valves and logic elements - KEC – C*P series

Maximum pressure cartridge valves allow control of hydraulic circuit pressures up 400 bar and 350 l/min maximum flow rate (NG25). Besides the normal manual pressure regulation mode, function like electrical command for discharge to drain, remote control, proportional pressure control or electrically selected dual pressure levels are also available.

DANA Cartridge valves and logic elements - KEC – C*P series

Features | DANA Cartridge valves and logic elements - KEC series

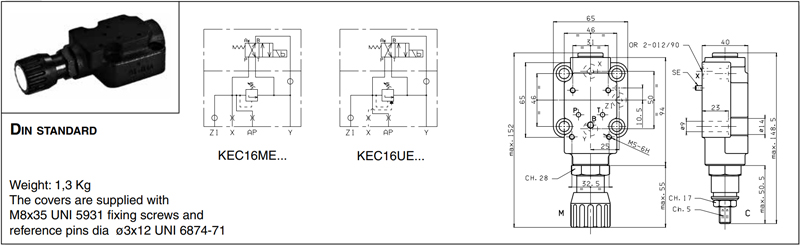

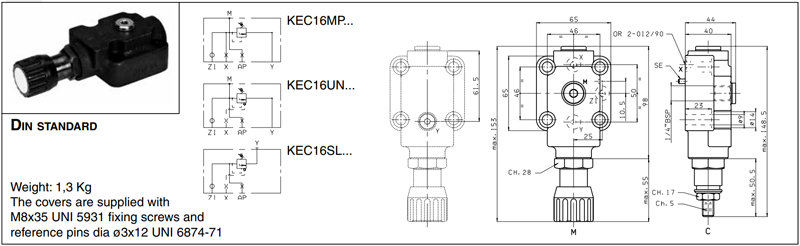

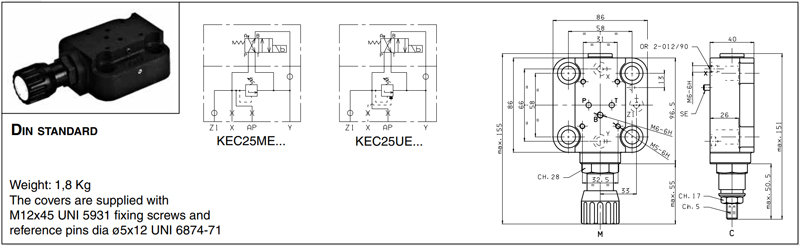

The CETOP 3/NG6 interface allows the mounting of a D.3.E… valve. A standard cartridge valve DIN 24342 is used. A cover not according to DIN rules is also available. The valve response specification may be modified by selection of different internal orifices according to the required application. The standard version has calibrated orifices of Ø 1 mm in X and AP.
