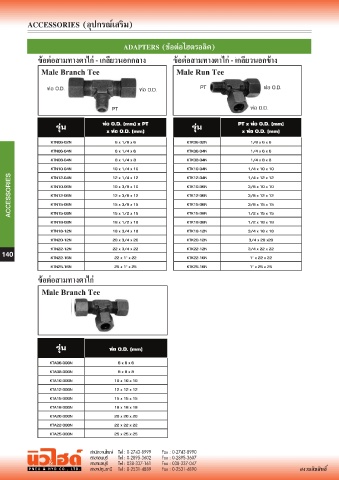

Page 140 - Rexroth Catalog By Pneu&Hyd

ท่อ O.D. (mm) x PT PT x ท่อ O.D. (mm)
x ท่อ O.D. (mm) x ท่อ O.D. (mm)

KTN06-02N 6 x 1/8 x 6 KTK06-02N 1/8 x 6 x 6
KTN06-04N 6 x 1/4 x 6 KTK06-04N 1/4 x 6 x 6
KTN08-04N 8 x 1/4 x 8 KTK08-04N 1/4 x 8 x 8
KTN10-04N 10 x 1/4 x 10 KTK10-04N 1/4 x 10 x 10
ACCESSORIES KTN10-06N 10 x 3/8 x 10 KTK10-06N 3/8 x 10 x 10
1/4 x 12 x 12
KTN12-04N
12 x 1/4 x 12
KTK12-04N
12 x 3/8 x 12
KTN12-06N
3/8 x 12 x 12
KTK12-06N
KTK15-06N
KTN15-06N
3/8 x 15 x 15
15 x 3/8 x 15
KTN15-08N
KTK18-08N
18 x 1/2 x 18
KTN18-08N 15 x 1/2 x 15 KTK15-08N 1/2 x 15 x 15
1/2 x 18 x 18
KTN18-12N 18 x 3/4 x 18 KTK18-12N 3/4 x 18 x 18
KTN20-12N 20 x 3/4 x 20 KTK20-12N 3/4 x 20 x20
KTN22-12N 22 x 3/4 x 22 KTK22-12N 3/4 x 22 x 22
140
KTN22-16N 22 x 1” x 22 KTK22-16N 1” x 22 x 22
KTN25-16N 25 x 1” x 25 KTK25-16N 1” x 25 x 25

ท่อ O.D. (mm)

KTA06-000N 6 x 6 x 6
KTA08-000N 8 x 8 x 8
KTA10-000N 10 x 10 x 10
KTA12-000N 12 x 12 x 12
KTA15-000N 15 x 15 x 15
KTA18-000N 18 x 18 x 18
KTA20-000N 20 x 20 x 20
KTA22-000N 22 x 22 x 22
KTA25-000N 25 x 25 x 25
