HIWIN Ball screw - FSC Type

บอลสกรู Super S Series แบบ FSC

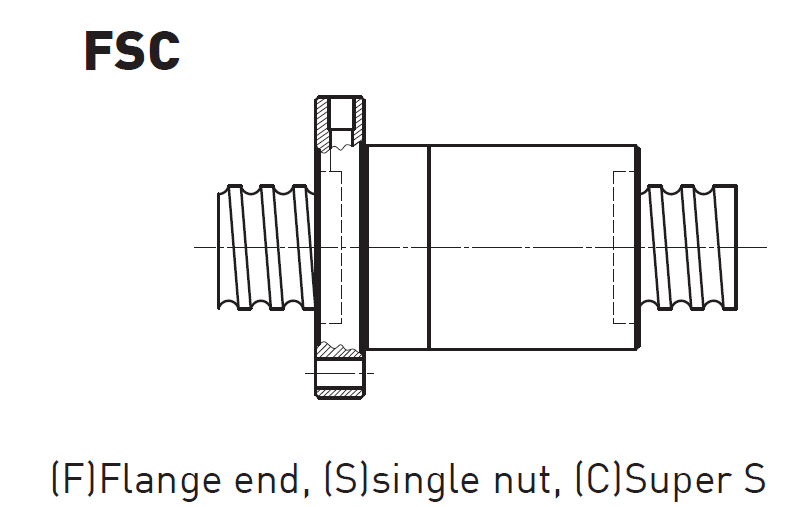

FSC Type - (F)Flange end, (S)single nut, (C)Super S

• F = แบบหน้าแปลน : Flange end
• S = นัท 1 ลูก : single nut
• C = รุ่น Super S

---

รายละเอียด : HIWIN Ball screw - FSC Type

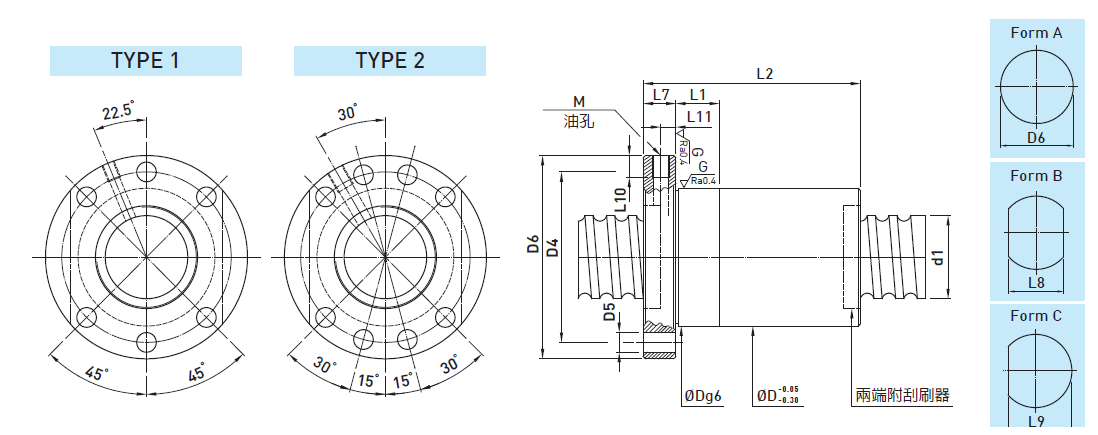

• แบบหน้าแปลน 6 และ 8 รูยึด
• สกรูขนาด 14 - 80 mm
• รับน้ำหนักได้ 920 - 12,340 kgf

1. Application
   • CNC Machinery, Industrial Machinery, Electronic Machinery, Precision Machinery and other High Speed Machinery
2. Features
   • Low noise (5-7 dB lower than traditional series) : The patented design of return unit can absorb noises caused by the impact of the steel balls, thus greatly reducing noise intensity.
   • Space-saving and weight-lightening design : The ballnut diamenter is 18-32% smaller than traditional series.
   • Dm-N value up to 220,000 : The patented design of the return unit can improve the strength of the return struncture, achieving a Dm-N value of up to 220,000.
   • High acceleration and deceleration velocity : The pathway of the specialized return unit, as well as the ballnut's strengthened design diminish the impact experienced by the balls, So, it can sustain peak performance in more rigorous operating environments, such as high accelecration and deceleration.
   • Accuracy grade : Precision ground ballscrews available in JIS Grade C0-C7; Rolled ballscrews available in JIS Grade C6-C10.

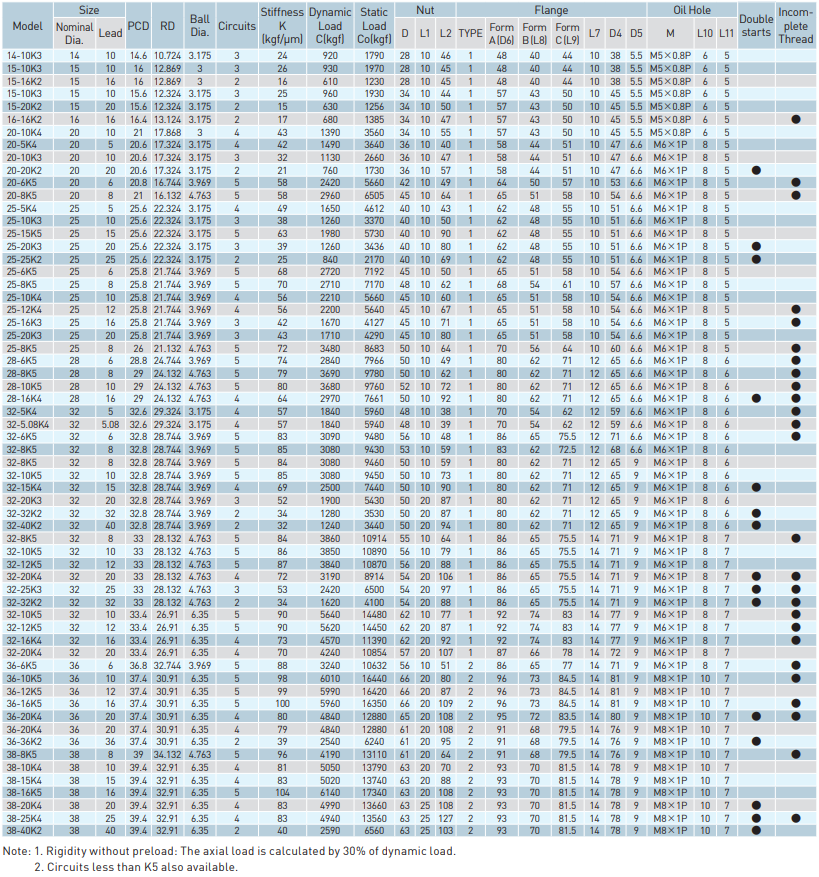

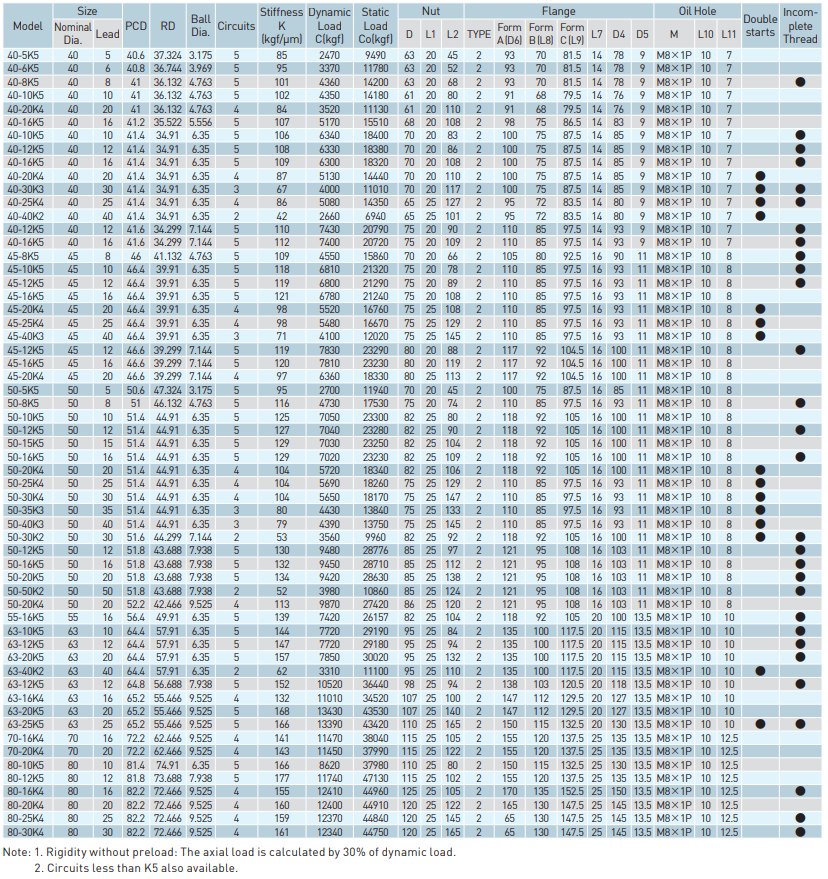

คุณสมบัติทางเทคนิค: HIWIN Ball screw - FSC Type
