AirTAC - Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series

วาล์วควบคุมทิศทาง รุ่น 4V Series / โซลินอยด์วาล์ว รุ่น 4V Series

Download PDF: 4V Series

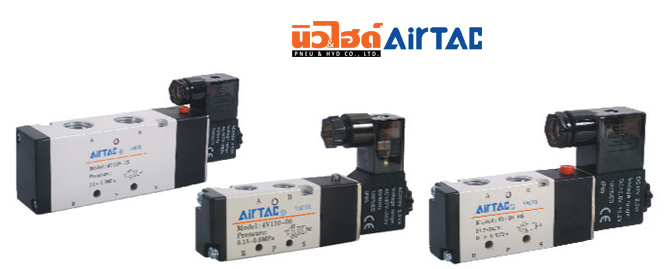

AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series
AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series

Features | AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series

  • Pilot-oriented mode: optional for internal or external
  • Structure in sliding column mode: good tightness and sensitive reaction
  • Three position solenoid valves have three kinds of central function for your choice
  • Double control solenoid valves have memory function
  • Internal hole adopts special processing technology which has little attrition, low start pressure and long service life
  • No need to add oil for lubrication
  • It is available to form integrated valve group with the base to save installation space
  • Affiliated manual device are equipped to facilitate installation and debugging
  • Several standard voltage grades are optional
airtac

สัญลักษณ์ (Symbol) วาล์วควบคุมทิศทางโซลินอยด์วาล์ว รุ่น 4V Series

Symbol AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series

Specifications | AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series

Model4V210-06
4V202-06
4V230C-06
4V230E-06
4V230P-06
4V210C08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Fluid Air (to be filtered by 40 µm filter element)
Acting Piloted
Port Size (1) In = Out = Exhaust = 1/8" In = Out = 1/4"
Exhaust = 1/8"
Orifice Size 14.0 mm2
(Cv = 0.78)
12.0 mm2
(Cv = 0.67)
16.0 mm2
(Cv = 0.89)
12.0 mm2
(Cv = 0.67)
Valve type 5 port 2 position 5 port 3 position 5 port 2 position 5 port 3 position
Operating pressure 0.15~0.8 MPa (21~114 psi)
Proof pressure 1.5 MPa (215 psi)
Temperature -20~70 °C
Material of body Aluminum alloy
Lubrication (2) Not required
Max. frequency (3) 5 cycle/sec 3 cycle/sec 5 cycle/sec 3 cycle/sec
Weight 4V210-06: 220g
4V220-06: 320g
360g 4V210-08: 220g
4V220-08: 320g
360g
  1. PT thread, NPT thread and G thread are available
  2. It can not stop in the midway of lubricating. Lubricants like ISO VG32 or equivalent are recommended.
  3. The maximum actuation frequency is in the no-load state.

Coil | AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series

ItemSpecification
Standard voltage AC220V, AC110V, AC24V, DC24V, DC12V
Scope of voltage AC: ±15%
DC: ±10%
Power consumption AC: 3.5VA
DC: 3.0W
Protection IP65 (DIN40050)
Temperature classification B Class
Electrical entry Terminal, Grommet
Activating time 0.05 sec and below

Ordering code | AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series

Example : 4V110-M5 / 4V120-M5 / 4V130C-M5 / 4V130E-M5

How to Select: 4V(1) 2(2) 10(3) 08(4) A(5) [ ](6) P(7)

(1) Model(2) Code(3) Valve type(4) Port size(5) Voltage(6) Electrical entry(7) Thread type
4V: Solenoid valve
(5/2 5/3 way)
2: 200 series 10: Single solenoid 5/2 way
20: Double solenoid 5/2 way
30C: Double solenoid 5/3 way closed center
30E: Double solenoid 5/3 way exhaust center
30P: Double solenoid 5/3 way pressure center
06: 1/8"
08: 1/4"
A: AC220V
B: DC24V
C: AC110V
E: AC24V
F: DC12V
Blank: Terminal
I: Grommet
P: PT
T: NPT
G: G

Inner structure | AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series

4V210

Inner structure AirTAC Solenoid Valve 4V series

4V220

Inner structure AirTAC Solenoid Valve 4V series

4V230C

Inner structure AirTAC Solenoid Valve 4V series
No.ItemNo.ItemNo.Item
1 Connector 9 Wearring 17 Override
2 Coil nut 10 Bottom cover 18 Manual override
3 Coil 11 Fixed screw 19 Spring holder
4 Armature 12 Spool spring 20 Return spring
5 Fixed plate 13 Bottom cover gasket 21 Side cover
6 Piston 14 Spool O-ring 22 Spring holder
7 Pilot kit 15 Spool - -
8 Body 16 Piston O-ring - -

Flow chart | AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series

Flow Chart AirTAC Solenoid Valve 4V series
Flow Chart AirTAC Solenoid Valve 4V series

Dimensions | AirTAC Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว 4V Series

4V210 (Termianl)

Dimensions AirTAC Solenoid Valve 4V series

4V210 (Grommet)

Dimensions AirTAC Solenoid Valve 4V series

4V220 (Terminal)

Dimensions AirTAC Solenoid Valve 4V series

4V220 (Grommet)

Dimensions AirTAC Solenoid Valve 4V series

4V230 (Terminal)

Dimensions AirTAC Solenoid Valve 4V series

4V230 (Grommet)

Dimensions AirTAC Solenoid Valve 4V series
