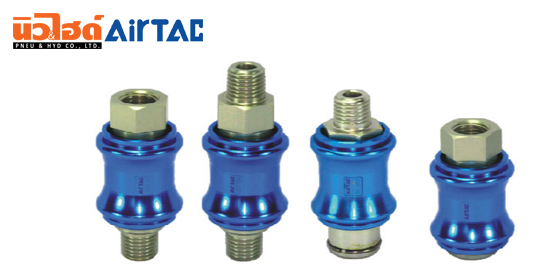

แมคคานิควาล์ว Mechanical Valve แบบวาล์วมือเลื่อน HSV Series
Download PDF: Pneumatic Mechanical Valve HSV series
Features | AirTAC แมคคานิควาล์ว Mechanical Valve แบบวาล์วมือเลื่อน HSV Series
วาล์วควบคุมด้วยมือ แบบมือเลื่อนให้วาล์วเปิดหรือปิด Hand Slide Valve อุปกรณ์นิวเมติกส์ Pneumatics สินค้าแบรน AirTAC ของแท้จากประเทศไต้หวัน
- There are several ways of internal and external thread connection, suitable for the application in different pipeline systems
- The directon-change slides smoothy and has good hand feeling
- There is large effective circulating area
- The valve spool surface is treated with acid washing passivation, and the surface of valve body is oxidized to keep the color for a long time.
| Model | HSV06 | HSV08 | HSV10 | HSV15 | HSV20 | HSV25 |
|---|---|---|---|---|---|---|
| Fluid | Air (to be filtered by 40µm filter element) | |||||
| Operating | Manual control direct acting type | |||||
| Port size (1) | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| Orifice size | 23.0 mm2 (Cv = 1.28) |
40.0 mm2 (Cv = 2.20) |
62.0 mm2 (Cv = 3.50) |
140.0 mm2 (Cv = 7.80) |
250.0 mm2 (Cv = 13.8) |
392.0 mm2 (Cv = 21.78) |
| Valve type | 3 port 2 position | |||||
| Lubrication | Not required | |||||
| Pressure range | 0~1.0 MPa (0~145 psi) | |||||
| Proof pressure | 1.5 MPa (215 psi) | |||||
| Temperature | -20~70 °C | |||||
| Material of body | Aluminum alloy | |||||
(1) PT thread, NPT thread and G thread are available.
Example: HSV08SSP
How to select: HSV(1) 08(2) SS(3) P(4)
| (1) Model | (2) Port size | (3)Dovt thread | (4) Thread type |
|---|---|---|---|
| HSV : Hand lever valve | 06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" 25: 1" |
Blank: Standard SS: Double male thread FF: Double female thread SF: Male and female thread |
P: PT T: NPT G: G |
| NO | Item |
|---|---|
| 1 | Valve plug |
| 2 | Body |
| 3 | O-ring |
| 4 | Clip |
| Type\Item | A | B1 | B2 | B3 | B4 | C | D | E1 | E2 | F1 | F2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HSV06 | 30 | 50 | 43 | 50 | 57 | 27.5 | 17 | 1/8" | 1/8" | 1/8" | 1/8" |
| HSV08 | 32.5 | 58 | 47 | 58 | 69 | 30 | 19 | 1/4" | 1/4" | 1/4" | 1/4" |
| HSV10 | 39 | 68.5 | 55.5 | 68.5 | 81.5 | 35.5 | 22 | 3/8" | 3/8" | 3/8" | 3/8" |
| HSV15 | 50 | 85.5 | 70.5 | 85.5 | 100.5 | 44 | 30 | 1/2" | 1/2" | 1/2" | 1/2" |
| HSV20 | 58 | 96.5 | 79.5 | 96.5 | 113.5 | 53.5 | 36 | 3/4" | 3/4" | 3/4" | 3/4" |
| HSV25 | 70 | 114.5 | 96.5 | 114.5 | 132.5 | 65.5 | 44 | 1" | 1" | 1" | 1" |
