AirTAC - วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Download PDF: GZ Series

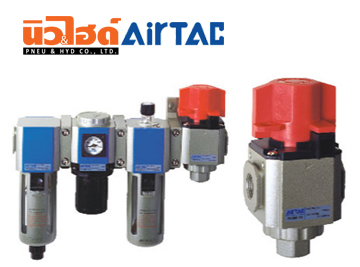

AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series
AirTAC - วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Features | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

  1. It's module design and can be used with G series F.R.L. combination by bracket
  2. This valve can be used as manual 3/2 way valve.
  3. Visual indication marked EXH/SUP.
  4. This valve meets the standard on installation conducted by operator specified by OSHA (Occupational Safety & Health Administration). When the machinery is maintained and serviced, the purge valve (Safe on-off valve) for remaining pressure shall be used to eliminate the remaining pressure when the air source is cut off. Valve must be locked to prevent accidental operation by a third party during maintenance. This prevents accidental system pressurization & cylinder actuation which can result in injuries to the machine operator.
airtac

สัญลักษณ์ (Symbol) | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Symbol AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Specifications | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

ModelGZ200-06GZ200-08GZ300-08GZ300-10GZ300-15GZ400-10GZ400-15
Fluid Air
Port size 1/8" 1/4" 1/4" 3/8" 1/2" 3/8" 1/2"
Exhaust port size 1/4" 3/8" 1/2"
Acting type Manual
Valve type 3 port 2 way
Pressure range 0~0.9 MPa (0~130 psi)
Proof pressure 1.5 MPa (215 psi)
Temperature range -20~70 °C
Operation angle 90°
Suitable F.R.L type GC200-06 GC200-08 GC300-08 GC300-10 GC300-15 GC400-10 GC400-15

Ordering code | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Ordering code for manifold

Example : GZ200-10 / GZ200-10 / GZ300-10

How to Select: GZ300(1) 10(2) [ ](3)

(1) Model(2) Port size(3) Thread type
GZ200: 200 Series soft on-off valve 06: 1/8" Blank: PT
T: NPT
G: G
08: 1/4"
GZ300: 300 Series soft on-off valve 08: 1/4"
10: 3/8"
15: 1/2"
GZ400: 400 Series soft on-off valve 10: 3/8"
15: 1/2"

Note: When it is used with F.R.L. combination, extra mounting bracket needed. Please refer to P148 for order detail.


Inner structures | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Inner AirTAC On-Off Valve GZ Series
Inner AirTAC On-Off Valve GZ Series
No.ItemNo.Item
1 Valve cap 8 O-ring
2 Body 9 Cover
3 Screw 10 Spool
4 Operating screw 11 Plug
5 Adjisting screw 12 Spring
6 Special csrew 13 O-ring
7 Fixing plate 14 Cover

Dimensions | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Dimensions AirTAC On-Off Valve GZ Series
Dimensions AirTAC On-Off Valve GZ Series
Item\ModelGZ200GZ300GZ400
06080810151015
A 47 60 75
AB 42 55 65
B 52.6 70.7 83.9
BA 30 41 50
BC 40 53.5 64
BD 42.5 56.5 66
C 89 112.5 134
K 5.5 6.5 8.5
KA 27 40 55
KB 8.5 8 11
KC 23 27 33.5
P 1/8" 1/4" 1/4" 3/8" 1/2" 3/8" 1/2"
PA 36.5 46 58.5
Q 1/4" 3/8" 1/2"
